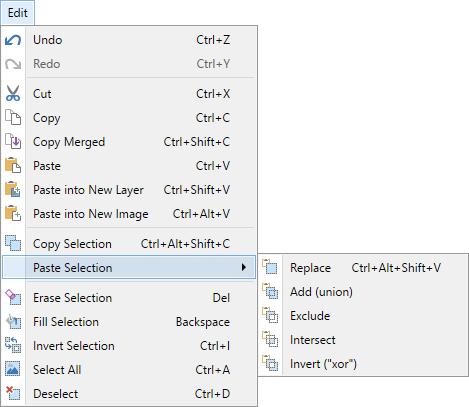

Edit Menu
The
Undo
This undoes the most recent action that has affected the image open on the canvas, if any.
If multiple images are open simultaneously,
This command can also be accessed through the
Redo
This reverses the most recent action that has been 'undone', if any.
If multiple images are open simultaneously,
This command can also be accessed through the
Cut
The
Selections can be any shape or size and made with any of the selection tools or any combination of them.
Once
This command can also be accessed via the keyboard shortcut
Copy
This command copies the selected region to the clipboard. The selection remains in situ on the active layer. The current selection also remains active. If there is no selection, the entire layer will be copied.
Copy Flattened
This command copies all the layers to the clipboard without having to use
Paste
If there is an image in the clipboard, this command will paste it onto the active layer. Pixels being pasted will overwrite existing pixels in the same location.
The pasted pixels will be selected following the paste operation and the

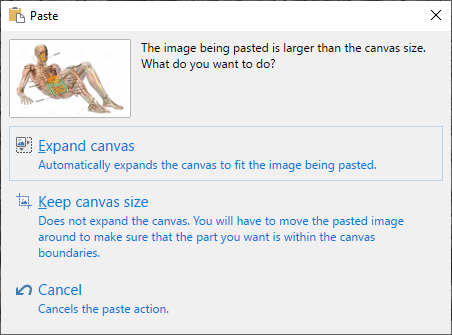

If the pasted image is too wide or too tall for the current canvas size, a prompt will appear asking whether the canvas should be resized.
This quick shortcut to the
If the image is zoomed in when pasting, the pixels will be placed within the current viewport, regardless of where they originally came from.
Paste into New Layer
This is similar to
The new layer is created immediately above the current active layer. The newly created layer is made active before the paste operation is performed and retains focus at the conclusion of the operation.
Paste into New Image
This is similar to
Copy Selection
This command copies the current selection geometry to the clipboard. It is particularly useful if you wish to preserve a selection shape in order to apply it to another layer, image, or save it for later use.
The selection geometry is copied to the clipboard as JSON text. The data itself is a list of polygons with the vertices recorded in [x,y] pairs.
{
"polygonList": [
"3,4,9,4,9,19,3,19,3,4"
]
}
The simple format of JSON makes it easy to use external utilities (like Notepad or PSPad) to maintain a list of different selection shapes. These utilities can even be used to edit the raw JSON data.
Paste Selection
The natural pair to
Selection combination modes are supported via the Paste Selection submenu so, for example, the clipboard selection geometry can be added to an existing selection.
Below, a circular selection has a rectangular selection (see above) added to it using
Erase Selection
This command erases the currently selected region of the active layer.
All pixels that lie within the selected region are replaced with transparent black pixels (RGB #000000 with opacity/Alpha of zero).
The selection outline is removed following the completion of the action (i.e. the selection is deselected).
The command can be invoked with the
Fill Selection
If a selection is active, this command will fill it with the current
The command can be invoked with the
Invert Selection
If a selection is active, this command will cause all selected pixels to be deselected, and vice versa.
The keyboard shortcut for this command is
Select All
This causes the entire active layer to become selected.
The keyboard shortcut for this command is
Deselect
The keyboard shortcut for the Deselect command is
Note
It is important to understand that when a selection is active in Paint.NET, editing operations are clipped at the edge of the selection.
Normal editing operations will not extend outside of an active selection.

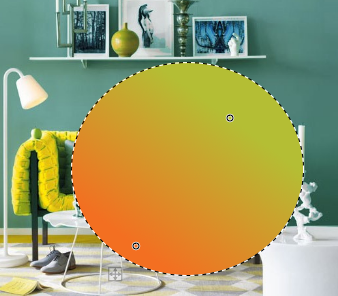

For example, the Ellipse Select Tool has been used to select a circular region in the middle of the image below. When the gradient tool is used, the new gradient does not extend outside the active selection.
Effects and Adjustments will be rendered normally within a selected area.
